High Speed Bio Bag Manufacturing Machine

The plastic bag making machine is high speed heat sealing heat cutting t-shirt bag making machine ,the material of bag is HDPE, LDPE, PLA,PBAT(Biodegradable Decomposable) film.It adopt full servo motors control system make non stretch for biodegradable film at production, the troubles and cause can be displayed on the touch screen,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine,high efficiency, easy and stable operation, low noise, non-stop working.

Send Inquiry

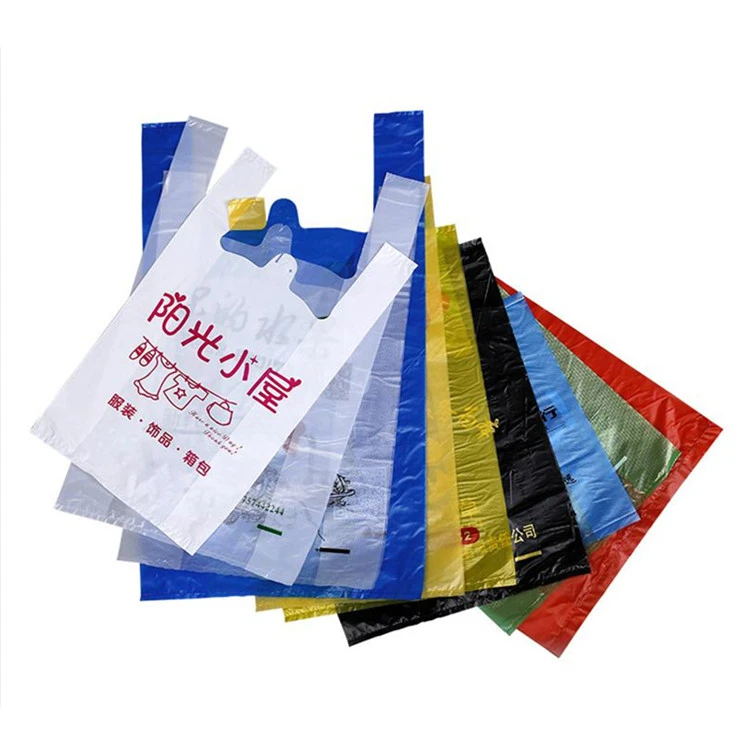

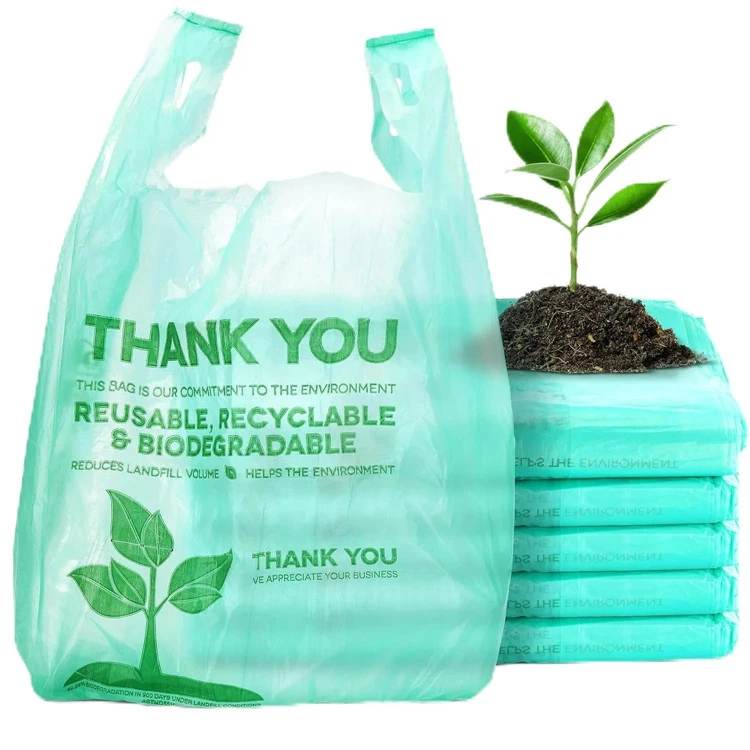

Finished bag

Feature

Technical Parameter
Model	XJBJX-400X2SVT	XJBJX-500X2SVT	XJBJX-600X2SVT
Sealing cutting bag width	330mm	430mm	530mm
Sealing cutting bag length	750mm	850mm	850mm
Film thickness	0.01mm-0.05mm	0.01mm-0.05mm	0.01mm-0.05mm
Raw material	HDPE,LDPE Film
Production speed(max)	200pcs/minx2lines for biodegradable film 300pcs/min x2lines for hdpe film	200pcs/minx2lines for biodegradable film 300pcs/min x2lines for hdpe film	200pcs/minx2lines for biodegradable film 250pcs/min x2lines for hdpe film
Total power	8kw	10kw	12kw
Overall Dimension(LXWXH)	7200X1580X1800mm	7200X1870X1850mm	7500X2050X1850mm
Machine Weight	2800kg	3000kg	3200kg

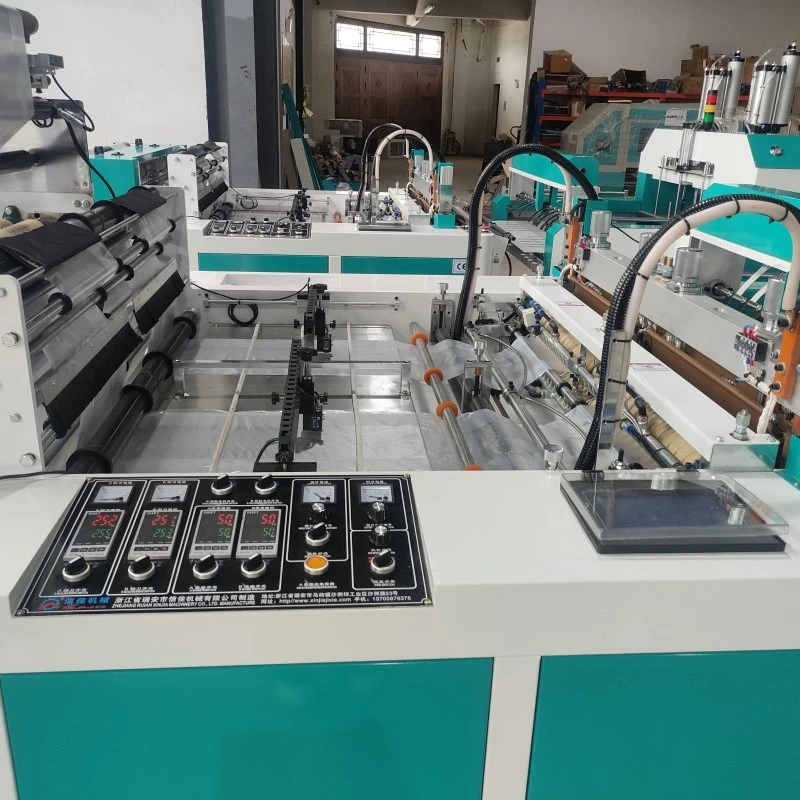

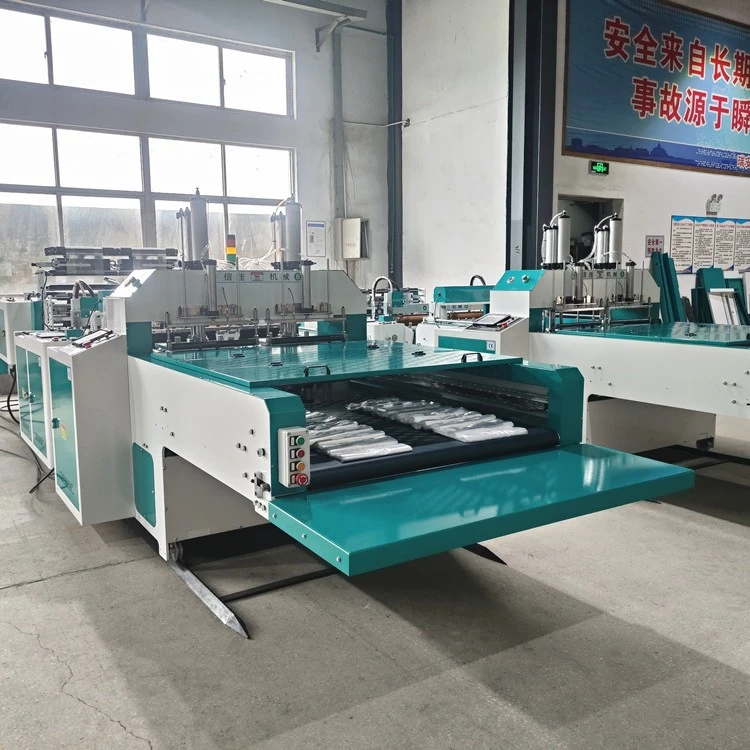

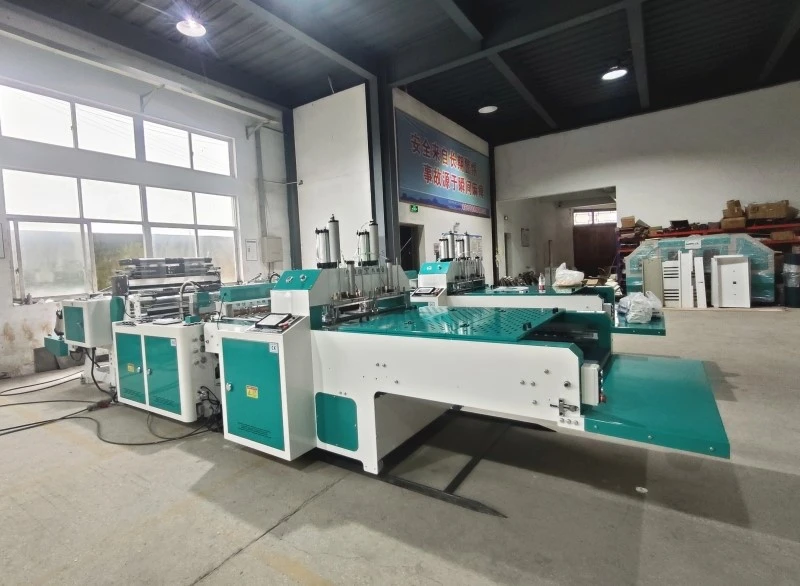

Machine Specifics

Our Advantage

A fully servo-controlled bag-making machine uses high-precision servo motors for every critical movement-such as film feeding, sealing, and cutting-delivering ultra-high accuracy, fast size changes via touchscreens, minimal material waste, and high-speed operation without excessive mechanical wear.
