Finished bags

product-640-214

Feature

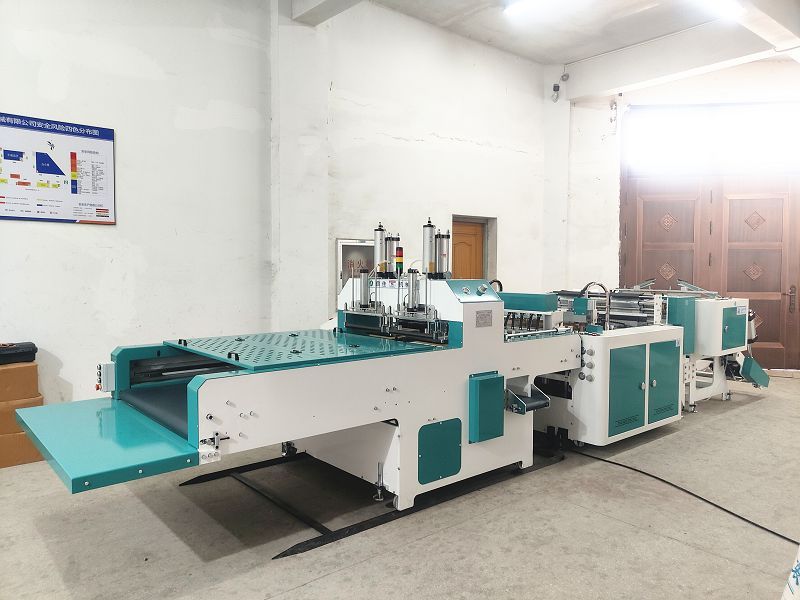

The biodegradable carry bag making machine is high speed heat sealing heat cutting fully biodegradable bag making machine ,the material of bag is HDPE, LDPE, PLA,PBAT(Biodegradable Decomposable) film. It adopt full servo motors control system make non stretch for biodegradable film at production, the troubles and cause can be displayed on the touch screen,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine,high efficiency, easy and stable operation, low noise, non-stop working.

Technical Parameter
Model	XJBJX-400X2SVT	XJBJX-500X2SVT	XJBJX-600X2SVT
Sealing cutting bag width	330mm	430mm	530mm
Sealing cutting bag length	750mm	850mm	850mm
Film thickness	0.01mm-0.05mm	0.01mm-0.05mm	0.01mm-0.05mm
Raw material	HDPE, LDPE, Biodegradable Film
Production speed	200pcs / minx2lines for biodegradable film 300pcs / min x2lines for hdpe film	200pcs/minx2lines for biodegradable film 300pcs/min x2lines for hdpe film	200pcs/minx2lines for biodegradable film 250pcs/min x2lines for hdpe film
Total power	8kw	10kw	12kw
Overall Dimension(LXWXH)	7200X1580X1800mm	7200X1870X1850mm	7500X2050X1850mm
Machine Weight	2800kg	3000kg	3200kg

Machine Specifics

SPECIAL REQUIREMENTS FOR BIODEGRADABLE BAG

We need get your biodegradable bag sample before confirm order ,because some biodegradable film is very stick and soft ,very difficult to feeding on the machine .

MACHINE ADVANTAGE

The machine not only make plastic hdpe ,ldpe bags , but also make PLA,PBAT ,compostable biodegradable bags ,and non stretch for biodegradable bag at production.

Maintenance and repair

Routine Maintenance: Keep the equipment foundation in good condition.
Daily routine maintenance is the first line of defense against malfunctions and should be performed by operators before, during, and after their shifts.
(1)Cleaning equipment surfaces and key components
(2)Check the transmission system
(3)Monitor operational status
(4)Clean up the work environment

Workshop

product-1094-818

Exhibition

product-1092-818

Packing

product-1210-400

FAQ

Q: Is this a machine specifically for biodegradable bags, or can it also produce PE bags??

A: the machine can make hdpe ,ldpe and biodegradable bags .

Q: Degradable films often low strength, poor ductility, and easy torn. How can the machine's tension control system prevent the film from stretching, deforming, or breaking?

A: The machine is fully servo-controlled from feeding to punching, the unwinding part servo motor and the main machine feeding servo motor synchronized control, preventing film stretching and breakage.

Q: For customers who produce biodegradable bags?

A: We need receive your biodegradable bag sample ,the best send us the biodegradable film test running on the machine .
