Finished bags

T-shirt bag with hole

Introduction

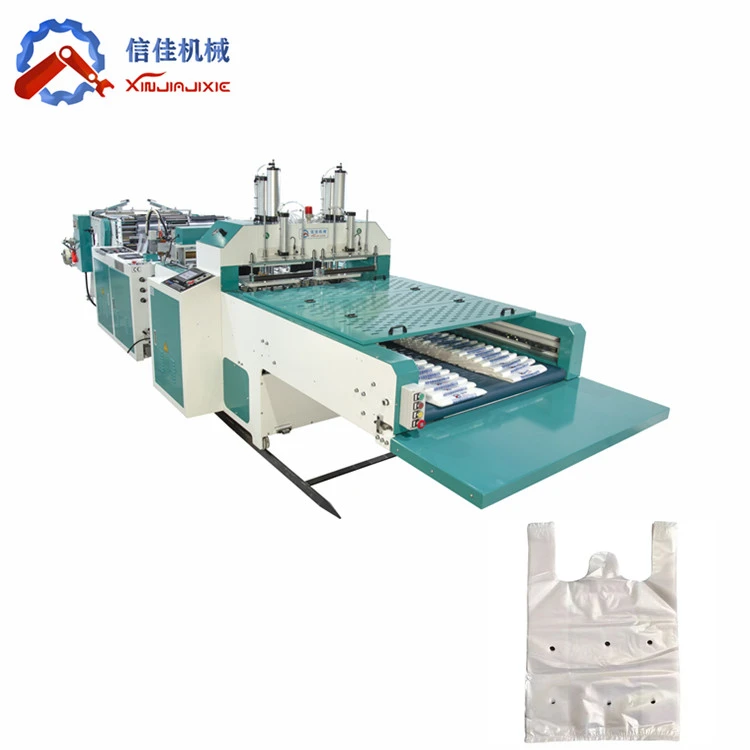

Our T-shirt bag making machine is designed for high-speed production of HDPE and LDPE T-shirt shopping bags and vegetable bags. The machine combines heat sealing, cutting and optional punch-hole processing in one production line, allowing manufacturers to produce bags with or without punch holes according to their production requirements.

With a two-line production configuration and servo-controlled operation, the machine is suitable for continuous production of T-shirt bags in different sizes and film thicknesses.

Machine Specifics

Technical Parameter
Model	XJBJX-400X2SVT	XJBJX-500X2SVT	XJBJX-600X2SVT
Sealing cutting bag width	330mm	430mm	530mm
Sealing cutting bag length	750mm	850mm	850mm
Film thickness	0.01mm-0.05mm	0.01mm-0.05mm	0.01mm-0.05mm
Raw material	HDPE,LDPE Film
Production speed (max)	300pcs/min 2lines without punch hole 120pcs/min 2lines with punch hole	300pcs/min 2lines without punch hole 120pcs/min 2lines with punch hole	250pcs/min 2lines without punch hole 120pcs/min2lines with punch hole
Total power	8kw	10kw	12kw
Overall Dimension(LXWXH)	7200X1580X1800mm	7200X1870X1850mm	7500X2050X1850mm
Machine Weight	2800kg	3000kg	3200kg

Features

Integrated Punch-Hole Processing

The punching function is integrated into the bag-making process, allowing the machine to produce vegetable bags and other T-shirt bags with punch holes without requiring a separate punching operation. The punching function can be switched off when bags without holes are required.

Two-Line Production

The two-line configuration allows two bags to be processed simultaneously, helping increase production output while maintaining consistent sealing and cutting performance.

Servo-Controlled Operation

Servo control is used for film feeding and bag-making operations to improve bag-length accuracy and maintain stable production during continuous operation.

Heat Sealing and Cutting

The machine completes heat sealing and cutting during the same production process, reducing additional handling between bag-making stages and providing consistent bag dimensions.

Application

The machine is suitable for producing:

T-shirt shopping bags
Supermarket vest bags
Vegetable bags with punch holes
Non-printed T-shirt bags
Printed T-shirt bags, when combined with a suitable printing process

The actual bag size, film thickness and production speed depend on the machine configuration and production requirements.

Our Service

Each equipment before the factory passes the strict quality testing by QC
We have raw material test running on the machine before shipments.
Safety packing before delivery.
Guarantee :warranty for 1 year ,within this year ,Electrical accessories such as frequency converters, computers, and motors are guaranteed for one year ( if parts broken naturally ,not by human damage, we can change the broken parts in free ).

Our Advantage

We specialize in manufacturing plastic & biodegradable bag making machines more than 26 years.
We are more professional in bag-making machine technology and can solve problems faster.
We have more than 10 years experienced engineers, technicians and skilled workers.
After-sales service is provided by a dedicated technical team 24 hours on line.
